Lehman Pouring Casting Tables/Machines

Lehman Pouring Casting Tables/Machines
The Very Best in the Ceramic Industry

RM30 - Slip Casting Machine
Retail - $3460.00
Your price - $2940.00
The Model "M30" was the hobby ceramic industry's original slip casting machine. It was designed and introduced in 1965, and with several improvements and updates, the current version remains  the flagship model of Lehman. The Model RM30,  has a unique reverse pumping action which allows for both the filling and draining of molds with just a flick of a switch. The utility nozzle easily controls the slip flow from a trickle to a full 5 GPM. The drain tube (attaches to the nozzle) is especially designed to draw in from the sides and will not harm the greenware.
Also, by using the reverse action, the RM30 will fill itself simply by inserting the drain tube into any container of slip. The clear plexi-glass top covers help eliminate moisture loss and allow  slip storage in the tank for weeks. The drive assembly has no bearings or seals exposed to the liquid and, as it turns, it gently mixes the slip and keeps it in ideal casting condition.
The 30 gallon fiberglass tank has a steel frame with 3 heavy duty casters  and it can be turned around within a 24" space. It uses a 1/3 h.p., 110 volt motor and the machine is shipped fully assembled  and ready to be put to work.
The RM30 has a diameter of 24", overall height is 45",  height to top of the tank is 32" - shipping weight is 125 lbs.


Lehman Studio Star Slip Casting Portable Unit - PP30
Retail - $1670.00  Your price - $1420.00 plus shipping

Lehman Studio Star Slip Casting Portable Unit - PP30T
Retail - $1750.00  Your price - $1490.00 plus shipping

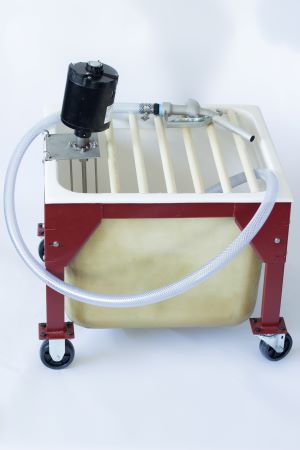

The Porta Potter 30 (shown on left) has been a studio favorite since 1972. The low-profile open top design is perfect for draining molds into, or for rolling under a drain table. The PP30 is only 22" tall and the fiberglass tank holds 30 gallons. The top is covered  with dowels that can be removed individually. You can see how the pump (SP4) rests on stainless steel pins and it can easily be  removed by lifting up on the motor handle. This unit is complete with hose, nozzle and the casters make it very portable.
Order SP4 pump separately.

The Porta Potter 30T (shown on right) is the taller version of the same efficient casting machine. All other features are the same, except to height is 33" to the draining surface. We show both  machines together to provide a reference of the difference in the  overall height .

Lehman Studio Star Slip Casting Portable Unit - CC6
Retail - $910.00  Your price - $775.00 plus shipping

Lehman Studio Star Slip Casting Portable Unit - CC6M
Retail - $1040.00  Your price - $850.00 plus shipping

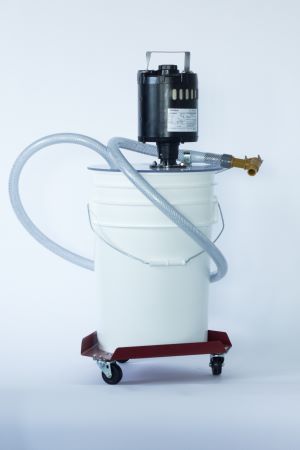

The CC6 casting unit uses a short version of the SP4 pump and fits down  tightly on a standard 6 gallon bucket. The CC6 is shown with the optional steel base (CC6M) with three swivel casters that makes it very easy to roll around. The motor mount  combination top cover is clear lexan so you can see inside the bucket.
Dimensions:
13" D x 27" H
